Battery: 60V32AH-58AH
Max speed(km/h): 30
L×W×H(mm): 2740×1025×1295
-
TL130
-
JINPENG
- Product Description
- FAQ
Mini Cargo Passsenger Electric Tricycle
| Specification list | TL130 |
| Optional colors | red, blue, green, yellow, grey, silver |
| Vehicle code | 91831374 |
| L×W×H(mm) | 2740×1025×1295 |
| Cargo Box size(mm) | 1300×950×300 |
| Wheel base(mm) | 1855 |
| Wheel track(mm) | 830 |
| Minumum ground clearance（mm） | ≥150 |
| Minimum turning radius（m） | ≤4 |
| Curb weight(kg) | 190 |
| Rated load (kg) | 200 |
| Max speed（km/h） | 30 |
| Grade ability（%） | ≤15 |
| Battery | 60V32AH-58AH |
| Motor, Controller（w） | 60V650W |
| Range per charging（km） | 40-70 |
| Charging time（h） | 6～8h |
| Front shock absorber | φ31 Drum shock absorber |
| Rear shock absorber | 50×85 four pieces leaf sprig |
| Front/Rear tyre | 3.00-12/3.00-12 |
| Rim type | steel |
| Front/Rear brake type | Front/Rear:Drum |
| Parking brake | Hand Brake |
| Rear axle structure | Integrated Rear Axle |
| CKD | 80 Units/40HQ 60 Units（With a shed）/40HQ |
| SKD | 50 Units/40HQ 40 Units（With shed）/40HQ |

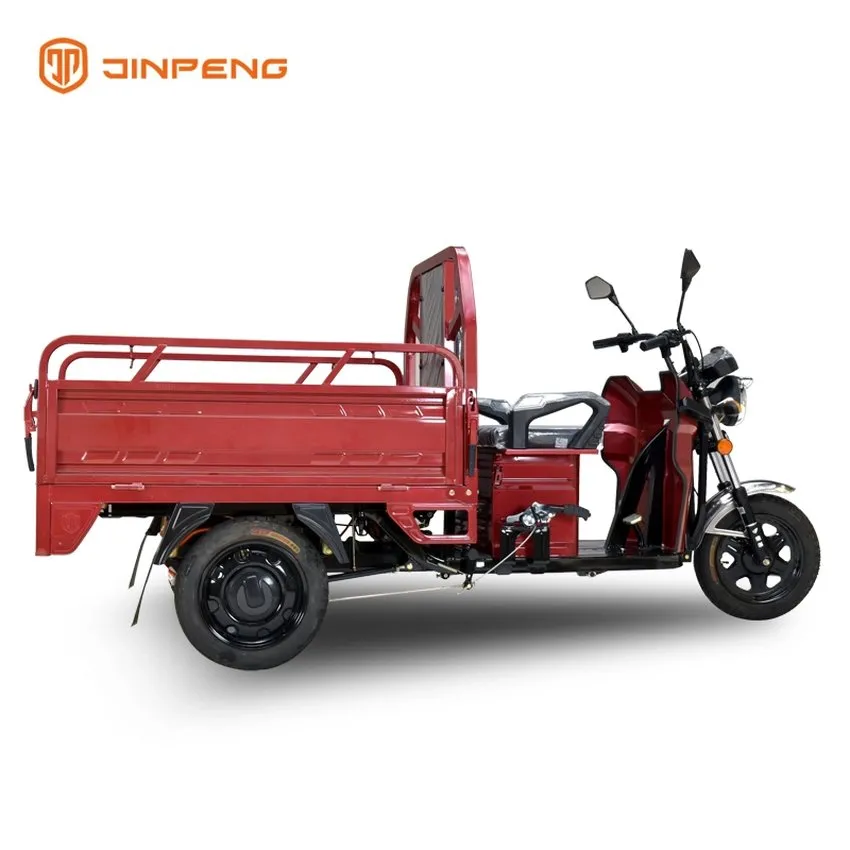

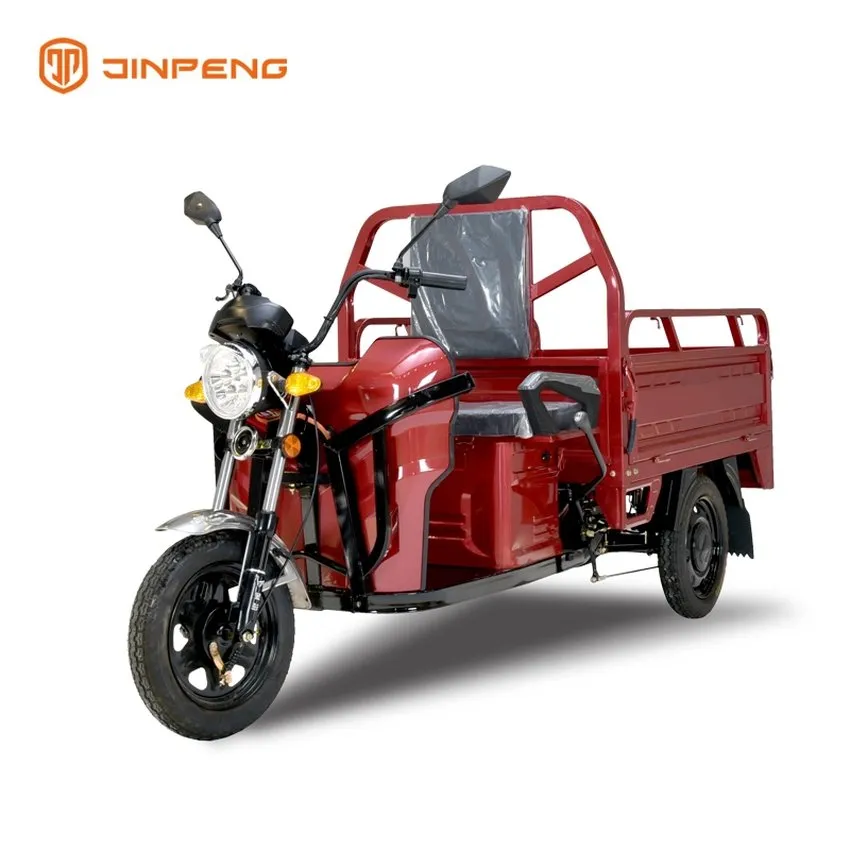

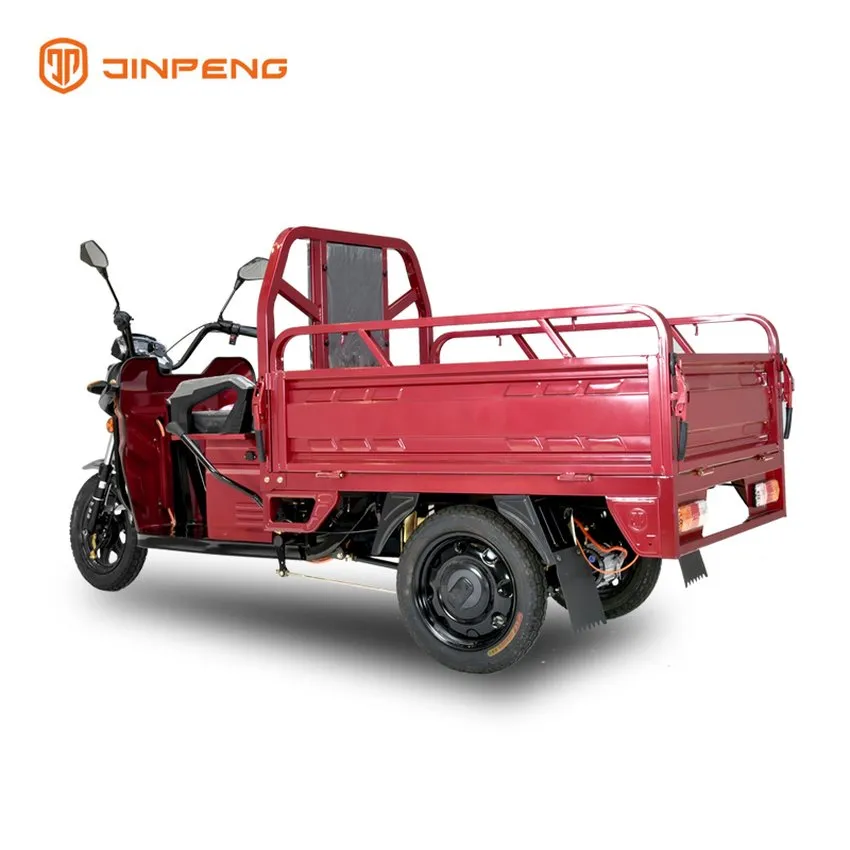

The TL130 is an electric cargo tricycle designed for efficient transportation. With dimensions of 2740×1025×1295, it is compact enough to navigate through narrow streets with ease. Equipped with a powerful 650w motor, it provides ample power for smooth and reliable operation. The TL130 has a maximum payload capacity of 200kg, making it ideal for carrying various goods and supplies. Whether it’s for deliveries or personal use, this electric cargo tricycle offers a convenient and eco-friendly solution for urban transportation needs.
Mini Cargo Passsenger Electric Tricycle
| Specification list | TL130 |
| Optional colors | red, blue, green, yellow, grey, silver |
| Vehicle code | 91831374 |
| L×W×H(mm) | 2740×1025×1295 |
| Cargo Box size(mm) | 1300×950×300 |
| Wheel base(mm) | 1855 |
| Wheel track(mm) | 830 |
| Minumum ground clearance（mm） | ≥150 |
| Minimum turning radius（m） | ≤4 |
| Curb weight(kg) | 190 |
| Rated load (kg) | 200 |
| Max speed（km/h） | 30 |
| Grade ability（%） | ≤15 |
| Battery | 60V32AH-58AH |
| Motor, Controller（w） | 60V650W |
| Range per charging（km） | 40-70 |
| Charging time（h） | 6～8h |
| Front shock absorber | φ31 Drum shock absorber |
| Rear shock absorber | 50×85 four pieces leaf sprig |
| Front/Rear tyre | 3.00-12/3.00-12 |
| Rim type | steel |
| Front/Rear brake type | Front/Rear:Drum |
| Parking brake | Hand Brake |
| Rear axle structure | Integrated Rear Axle |
| CKD | 80 Units/40HQ 60 Units（With a shed）/40HQ |
| SKD | 50 Units/40HQ 40 Units（With shed）/40HQ |
The TL130 is an electric cargo tricycle designed for efficient transportation. With dimensions of 2740×1025×1295, it is compact enough to navigate through narrow streets with ease. Equipped with a powerful 650w motor, it provides ample power for smooth and reliable operation. The TL130 has a maximum payload capacity of 200kg, making it ideal for carrying various goods and supplies. Whether it’s for deliveries or personal use, this electric cargo tricycle offers a convenient and eco-friendly solution for urban transportation needs.
1. Q: Can I get some samples?
Re: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
Re: No. All products are to be produced according to your order including samples.
3. Q: What’s the delivery time?
Re: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.
4. Q: Can I mix different models in one container?
Re: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
Re: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it’s packed for shipment.
6. Q: Do you have after-sale service? What’s the after-sale service?
Re: We have oversea after-sale service file for your reference. Please consult the sales manager if needed.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
Re: Yes, we will. The core of our company culture is honesty and credit. Jinpeng has become a trusted partner of dealers since its establishment.
8. Q: What is your payment?
Re: TT, LC.
9. Q: What are your shipping terms?
Re: EXW, FOB, CNF, CIF.
1. Q: Can I get some samples?
Re: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
Re: No. All products are to be produced according to your order including samples.
3. Q: What’s the delivery time?
Re: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.
4. Q: Can I mix different models in one container?
Re: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
Re: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it’s packed for shipment.
6. Q: Do you have after-sale service? What’s the after-sale service?
Re: We have oversea after-sale service file for your reference. Please consult the sales manager if needed.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
Re: Yes, we will. The core of our company culture is honesty and credit. Jinpeng has become a trusted partner of dealers since its establishment.
8. Q: What is your payment?
Re: TT, LC.
9. Q: What are your shipping terms?
Re: EXW, FOB, CNF, CIF.
