JBIIU150
-
JINPENG
- Product Description
- FAQ

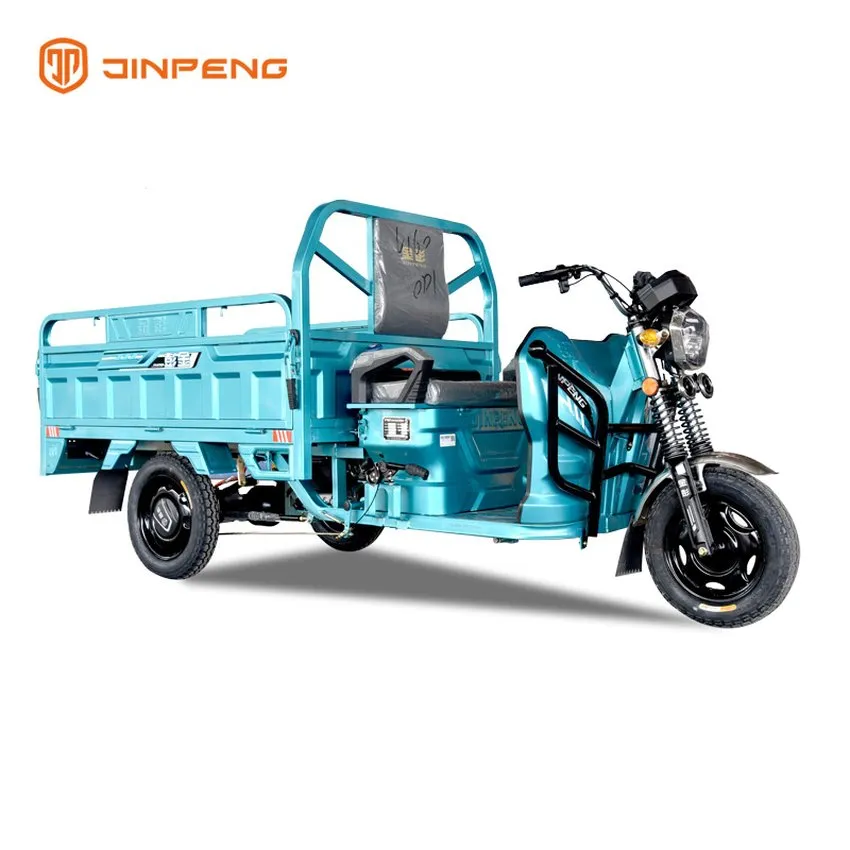

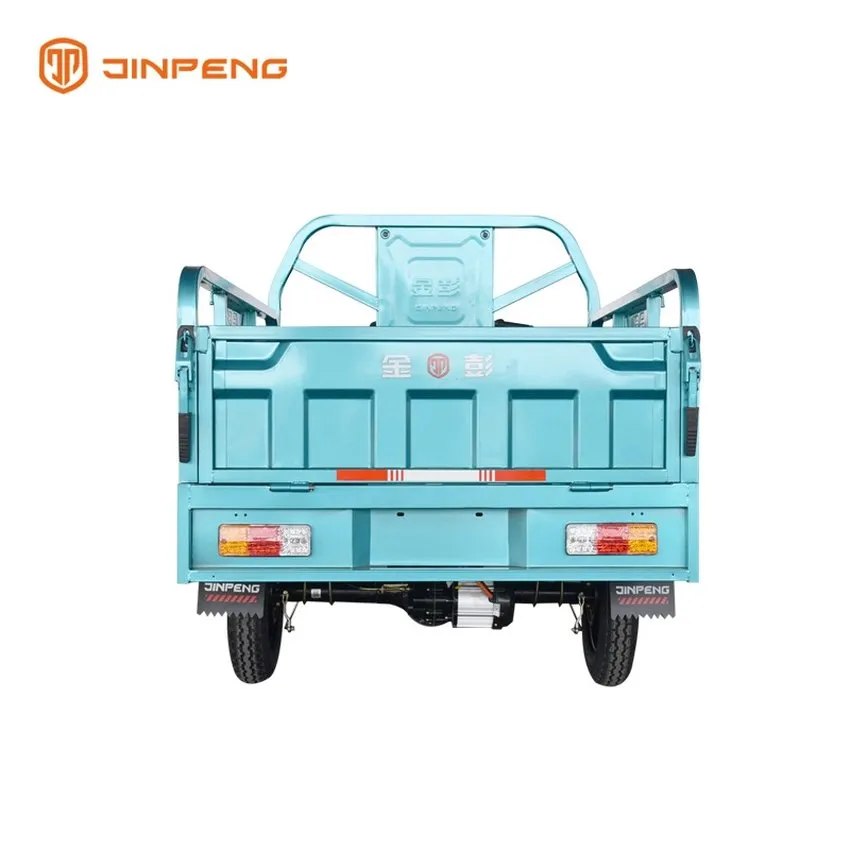

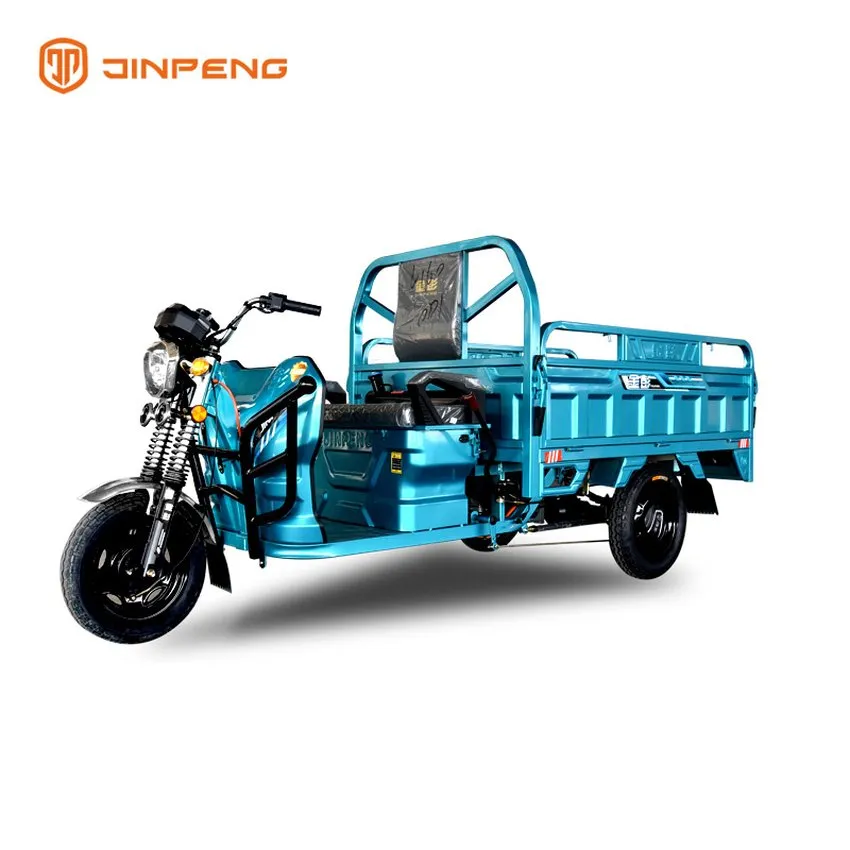

Oil And Electricity Electric Caogo Tricycle with Long Range
| Specification list | JBIIU150A/W1 |
| Optional colors | red, blue, green, yellow, grey, silver |
| Vehicle code | 91831146 |
| L×W×H(mm) | 2960×1180×1360 |
| Cargo Box size(mm) | 1500×1100×330 |
| Wheel base(mm) | 2060 |
| Wheel track(mm) | 950 |
| Minumum ground clearance（mm） | ≥150 |
| Minimum turning radius（m） | ≤4 |
| Curb weight(kg) | 255 |
| Rated load (kg) | 300 |
| Max speed（km/h） | 30 |
| Grade ability（%） | ≤20 |
| Battery | 60V32Ah |
| Motor, Controller（w） | 60V1000W |
| Range per charging（km） | 215-225（9L Tank） |
| Charging time（h） | 6～8h |
| Front shock absorber | Φ37 Disc shock absorber |
| Rear shock absorber | 50×120 Five pieces leaf spring |
| Front/Rear tyre | 3.5-12/3.75-12 |
| Rim type | steel |
| Front/Rear brake type | Front:Disc/Rear:Drum |
| Parking brake | Hand brake |
| Rear axle structure | Integrated rear axle |
| Vehicle lamps | Normal light (48V) |
| SKD | 50Units/40HQ 15 Units/20GP |
| SKD(Steel Frame) | 32 Units/40HQ 12 Units/20GP |
The JBU150 is an electric cargo tricycle designed for efficient transportation of goods. With a cargo box size of 1500×1100×330, it meets the daily cargo needs effectively.
One of the key features of the JBU150 is its ability to increase the range by refueling. With a mileage of up to 200km, it reduces the time wasted on charging, allowing for more trips during working hours and creating greater economic benefits.
This electric cargo tricycle is designed to be reliable and durable, ensuring smooth and safe transportation of goods. Its compact size and maneuverability make it suitable for navigating through narrow streets and crowded areas.
With its eco-friendly electric motor, the JBU150 contributes to reducing carbon emissions and promoting a greener environment. It is an ideal choice for businesses and individuals looking for a cost-effective and sustainable transportation solution.
Oil And Electricity Electric Caogo Tricycle with Long Range
| Specification list | JBIIU150A/W1 |
| Optional colors | red, blue, green, yellow, grey, silver |
| Vehicle code | 91831146 |
| L×W×H(mm) | 2960×1180×1360 |
| Cargo Box size(mm) | 1500×1100×330 |
| Wheel base(mm) | 2060 |
| Wheel track(mm) | 950 |
| Minumum ground clearance（mm） | ≥150 |
| Minimum turning radius（m） | ≤4 |
| Curb weight(kg) | 255 |
| Rated load (kg) | 300 |
| Max speed（km/h） | 30 |
| Grade ability（%） | ≤20 |
| Battery | 60V32Ah |
| Motor, Controller（w） | 60V1000W |
| Range per charging（km） | 215-225（9L Tank） |
| Charging time（h） | 6～8h |
| Front shock absorber | Φ37 Disc shock absorber |
| Rear shock absorber | 50×120 Five pieces leaf spring |
| Front/Rear tyre | 3.5-12/3.75-12 |
| Rim type | steel |
| Front/Rear brake type | Front:Disc/Rear:Drum |
| Parking brake | Hand brake |
| Rear axle structure | Integrated rear axle |
| Vehicle lamps | Normal light (48V) |
| SKD | 50Units/40HQ 15 Units/20GP |
| SKD(Steel Frame) | 32 Units/40HQ 12 Units/20GP |
The JBU150 is an electric cargo tricycle designed for efficient transportation of goods. With a cargo box size of 1500×1100×330, it meets the daily cargo needs effectively.
One of the key features of the JBU150 is its ability to increase the range by refueling. With a mileage of up to 200km, it reduces the time wasted on charging, allowing for more trips during working hours and creating greater economic benefits.
This electric cargo tricycle is designed to be reliable and durable, ensuring smooth and safe transportation of goods. Its compact size and maneuverability make it suitable for navigating through narrow streets and crowded areas.
With its eco-friendly electric motor, the JBU150 contributes to reducing carbon emissions and promoting a greener environment. It is an ideal choice for businesses and individuals looking for a cost-effective and sustainable transportation solution.
1. Q: Can I get some samples?
Re: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
Re: No. All products are to be produced according to your order including samples.
3. Q: What’s the delivery time?
Re: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.
4. Q: Can I mix different models in one container?
Re: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
Re: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it’s packed for shipment.
6. Q: Do you have after-sale service? What’s the after-sale service?
Re: We have oversea after-sale service file for your reference. Please consult the sales manager if needed.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
Re: Yes, we will. The core of our company culture is honesty and credit. Jinpeng has become a trusted partner of dealers since its establishment
8. Q: What is your payment?
Re: TT, LC.
9. Q: What are your shipping terms?
Re: EXW, FOB, CNF, CIF.
1. Q: Can I get some samples?
Re: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
Re: No. All products are to be produced according to your order including samples.
3. Q: What’s the delivery time?
Re: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.
4. Q: Can I mix different models in one container?
Re: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
Re: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it’s packed for shipment.
6. Q: Do you have after-sale service? What’s the after-sale service?
Re: We have oversea after-sale service file for your reference. Please consult the sales manager if needed.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
Re: Yes, we will. The core of our company culture is honesty and credit. Jinpeng has become a trusted partner of dealers since its establishment
8. Q: What is your payment?
Re: TT, LC.
9. Q: What are your shipping terms?
Re: EXW, FOB, CNF, CIF.
